When a round bend U bolt lands on square tubing, it only touches the surface at two narrow tangent points. All of the clamping force gets squeezed through those two thin lines instead of spreading across the member, and that concentrated load is exactly what dents thin wall tube, walks fasteners loose, and lets brackets rotate under vibration. Steel square bend U bolts solve this by matching the geometry of the part you are clamping instead of fighting it.
This article walks through the advantages of steel square bend U bolts, where they get used across agricultural, trailer, construction, and industrial applications, the steel grades and finishes available, and exactly how to measure and specify one so the part you order fits the first time.
Whether you are securing leaf springs to a trailer frame, mounting a bracket to structural steel, or building out a fence line, the right U bolt comes down to matching bend shape to cross section and getting your dimensions right before you order.

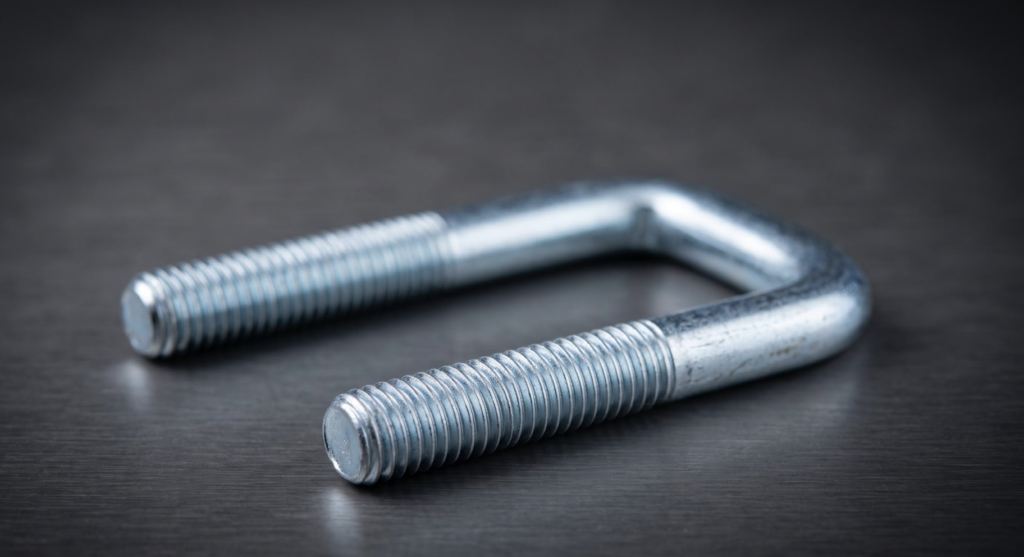

What Is a Steel Square Bend U Bolt?
A steel square bend U bolt is a rod formed with two 90 degree bends, producing three flat sides and a rectangular opening between two threaded legs. Nuts and washers thread onto both legs to clamp the bolt against a mounting plate or bracket, securing whatever passes through the opening. Buyers searching for this part also use the terms square U bolt, 90 degree U bolt, and square bend clamp bolt, all describing the same fastener.
Square Bend vs Round Bend: The Core Geometric Difference
A round bend U bolt follows a continuous radius, so it mates cleanly with round pipe, tubing, and rod. A square bend U bolt instead produces a flat bearing surface across the top plus two straight legs, matching the flat faces of square and rectangular tubing, channel, and flat stock. Every advantage covered in this article traces back to that one difference in shape.
Anatomy of a Square Bend U Bolt
When you specify a square bend U bolt, you are defining rod diameter, inside width, inside length or leg length, thread length, thread pitch, and finish. Each of these gets its own detailed section later in this article. For now, just know that all six specifications work together to determine whether the part clears your mounting plate and seats fully against your tubing.
Why the Square Bend Geometry Produces Better Clamping
Picture a round bend U bolt sitting on top of square tubing. The curve of the bend only makes contact along two thin tangent lines, one on each side of the tube’s top corner. Every pound of clamping force you apply gets funneled through those two narrow lines, driving local stress far higher than the average pressure across the joint. On thin wall material, that concentrated load deforms the tube wall before you ever reach your target torque.
A square bend U bolt eliminates the problem by putting a flat face against a flat face. The same clamp load that was squeezed into two tangent lines now spreads across the full width of the tube’s top surface. Lower contact pressure per square inch means less deformation of thin wall tube, a larger friction area resisting slip, and a joint that holds its torque instead of settling and loosening over the first few duty cycles. This pressure distribution advantage is the mechanical reason square bend U bolts outperform round bend U bolts on square and rectangular stock, and it is the foundation for every benefit that follows.
Key Advantages of Steel Square Bend U Bolts
Each advantage below builds on the flat face contact described above. Together they explain why square bend U bolts have become essential fasteners across automotive, agricultural, and structural applications.
Flush Contact on Square and Rectangular Stock
Because the bend matches the cross section it clamps, a square bend U bolt sits flush against square tubing, rectangular tubing, channel, and flat bar with no gap and no point loading. This matters most on thin wall trailer tube and implement frames, where a round bend U bolt would dent the corner of the member as you tighten it down. Flush contact keeps the tube wall intact while still delivering full clamping force.
Higher Effective Clamp Load Without Crushing the Member
Torque you apply at the nut converts into clamping force at the joint, but that conversion only works if the surface underneath can handle the load without collapsing. Spreading the same torque over a full flat face, rather than two tangent points, means you can reach your specified torque value without crushing the tube wall. That translates directly into a stronger, more reliable joint at the same fastener size.
Strong Resistance to Vibration and Loosening
A round bend sitting on square stock has a slight rocking tendency, since the curved surface never fully seats against the flat member. Over thousands of vibration cycles, that rocking motion is exactly what walks a fastener loose. The flat seat of a square bend U bolt removes the rocking entirely, which is why square bend U bolts are the standard choice for agricultural equipment and off road machinery, where constant vibration and rough terrain are the normal duty cycle rather than the exception.
Anti Rotation and Positional Stability
Because the square opening matches the shape of the member passing through it, the clamped part cannot spin inside the bolt the way a round shape could rotate inside a round bend. This positional stability matters most on brackets, arms, and any assembly carrying a directional load, where even a small amount of rotation would throw off alignment or introduce unwanted stress on connected components.
High Tensile Strength from Carbon and Alloy Steel
Steel square bend U bolts offer high tensile strength and resistance to mechanical wear, and that strength scales with the grade you choose. Low carbon steel covers general duty applications where formability matters more than peak strength, while medium carbon and heat treated grades step up tensile strength for sustained or dynamic loads. Grade selection should always follow the demands of the application, and BoltCraft can produce to whatever specification your project calls for.
Wide Range of Corrosion Protection Options
Square U bolts are available plain, zinc plated, hot dip galvanized, and with phosphate and oil or specialty coatings, giving you a finish suited to nearly any exposure. Plain finish works for indoor, climate controlled settings. Zinc plating adds a baseline layer of corrosion resistance for general outdoor use. Hot dip galvanizing, where the part is coated in molten zinc, provides a thicker protective layer for field equipment exposed to mud, fertilizer, and standing moisture. Stainless steel becomes the right call in marine environments and other high corrosion settings where even galvanized coatings fall short over time.
Fast Installation and Field Serviceability
A square bend U bolt installs with standard hand tools, requires no welding, and never involves drilling into the member it clamps. Since it is a fully removable, threaded connection, service technicians can back off the nuts, adjust or replace the clamped component, and retighten without cutting anything apart. That simple installation and easy disassembly is a major advantage over welded or permanently fastened alternatives.
Cost Efficiency in Production Volumes
Compare a square bend U bolt against a welded bracket or a machined clamp built for the same job, and the cost gap becomes obvious. Welding and machining both require skilled labor, dedicated equipment, and longer lead times per unit. A formed and threaded U bolt produces the same clamping result at a fraction of the per part cost, especially once you are ordering in the volumes that OEM production runs require.
Full Customization for OEM Applications
Beyond standard catalog sizes, square bend U bolts can be produced to your exact dimensions, thread length, grade, finish, and order quantity. You can submit a square U bolt request directly through our shop to get the process started. That level of customization is what makes them practical for OEM production lines with specific requirements, rather than forcing your design around whatever happens to be sitting on a shelf.
| Comparison Point | Square Bend U Bolt | Round Bend U Bolt |
| Contact Surface | Full flat face contact | Two narrow tangent points on flat stock |
| Best Stock Shape | Square and rectangular tubing, channel, flat bar | Round pipe, tubing, and rod |
| Rotation Resistance | High, square opening indexes the member | Lower on non round profiles |
| Typical Applications | Trailer frames, implement toolbars, structural brackets | Exhaust systems, pipe hangers, round pole mounts |
Where Steel Square Bend U Bolts Are Used
Agricultural Equipment and Implements
Planter toolbars, cultivator shanks, and hitch and drawbar mounts all rely on square bend U bolts to clamp round or square components to square structural tube without loosening across long field days and rough terrain. This is the same duty cycle BoltCraft partners with agricultural OEMs to build for.
Trailers, Truck Bodies, and Suspension Assemblies
Square U bolts secure leaf springs to vehicle axles and hold trailer crossmembers in place, making them one of the most common fasteners on a boat trailer frame, utility trailer, or truck suspension system.
Heavy Construction and Structural Framing
Scaffold and brace connections, along with structural beam mounts, use square bend U bolts as structural supports where flat, even contact against I beams and channel keeps the connection stable under load.
Industrial Machinery and Plant Equipment
Conveyor frames and tank or skid mounting both depend on square U bolts for reliable, adjustable clamping across industrial applications, including mounting motors and securing cable runs in telecommunications installations.
Utility, Fencing, and Signage
Sign post to bracket connections and fence post hardware are everyday, lower load examples of the same principle at work, available at nearly any hardware store in standard sizes for straightforward field repairs.
Square Bend vs Round Bend vs Semi Round: Which One Fits
The rule of thumb is simple: match the bend to the cross section of the member you are clamping. Choose a round bend U bolt for pipe, tube, and round poles. Choose a square bend U bolt for square and rectangular tubing, channel, angle, and flat stock. Choose a semi round bend for irregular or partially rounded profiles that do not fit cleanly into either category. If your application is genuinely round stock such as an exhaust pipe or a round fence post, a round bend U bolt is still the better buy since it will seat more evenly than forcing a square bend onto curved material. For a broader look at where each bend style shows up, see our overview of what u bolts are used for across industries.
| Bend Type | Best Matched Stock | Common Use Case |
| Round Bend | Round pipe, tube, rod | Exhaust systems, pipe hangers, round posts |
| Square Bend | Square and rectangular tube, channel, flat bar | Trailer frames, implement toolbars, structural brackets |
| Semi Round | Irregular or partially rounded profiles | Mixed profile brackets and transition mounts |
Steel Grades and Finishes for Square Bend U Bolts
Choosing steel U bolt material always comes down to trading strength against formability, cost against corrosion life, and coating thickness against thread fit. Heavier coatings add real protection but can also reduce the clearance in your threads, a detail worth checking before you finalize an order.
Low Carbon Steel
Low carbon steel is the standard choice for general duty applications where the part needs to form cleanly during manufacturing and peak tensile strength is not the primary requirement.
Medium Carbon and Heat Treated Steel
Medium carbon steel, especially when heat treated, delivers higher strength for applications carrying sustained or dynamic loads, such as suspension systems and structural mounts under constant stress.
Stainless Steel Alternatives
Stainless steel U bolts offer excellent corrosion resistance, making them the right choice for marine environments, washdown areas, and other settings where moisture exposure is constant rather than occasional.
Zinc Plating, Hot Dip Galvanizing, and Other Coatings
Zinc plating provides a thinner, cost effective layer of corrosion resistance for general outdoor use, while hot dip galvanizing, which coats the part in molten zinc, builds a thicker protective layer for long term exposure. Keep in mind that thicker coatings can tighten thread fit, so always confirm your nuts and washers are sized to match the coated thread diameter.
How to Measure and Specify a Square Bend U Bolt
Getting these five measurements right the first time is what separates a part that fits from one that gets sent back. Use calipers for accurate measurements rather than a tape measure whenever precision matters.
Inside Width
Inside width is the distance between the two legs of the U bolt, measured from the inner face of one leg to the inner face of the other. This dimension needs to match the width of the member you are clamping, not the outside dimension of the bolt itself.
Inside Height or Leg Length
Inside length, also called leg length, runs from the base of the bend to the end of the threaded legs. Leg length is crucial for proper fit, since it determines how deep the bolt reaches through your mounting plate or bracket.
Rod Diameter and Thread Size
Rod diameter, also called bolt diameter, sets the thickness of the threaded section and determines which nuts and washers will fit. Thread diameter affects compatibility with nuts and washers, so confirm thread pitch alongside diameter before ordering.
Thread Length and Grip Requirement
Thread length needs to clear the combined thickness of your washer, nut, and mounting plate, with a bit of extra grip built in. Coming up short here is one of the most common reasons a square U bolt fails to tighten down properly on installation day.
Common Specification Mistakes to Avoid
The most frequent errors are measuring outside width instead of inside width, forgetting to account for coating thickness when checking thread fit, ordering too little thread length once washer, nut, and plate thickness are stacked together, and defaulting to a round bend U bolt out of habit when the application actually calls for a square bend. Each of these is a quick fix at the ordering stage and a costly delay once the part has already shipped.
Installation Best Practices
Follow these steps for a secure, long lasting installation:
- Position the square bend against the mounting surface so the flat face sits fully against the member.
- Insert both threaded legs through the mounting plate or bracket.
- Add flat washers and nuts to each leg.
- Tighten the nuts gradually and evenly, alternating side to side rather than fully tightening one leg before starting the other, to prevent tilting.
- Torque to the specification matched to your bolt diameter and material.
- Retorque after the first duty cycle, since new installations often settle slightly under initial load.
On high vibration mounts, consider adding a saddle plate or backing plate, available through our value added services, to spread load even further. And on thin wall tube, avoid over tightening, since exceeding the specified torque can crush the member even with the improved pressure distribution a square bend provides.
Get Custom Steel Square Bend U Bolts from BoltCraft
BoltCraft manufactures steel square bend U bolts to your exact dimensions and thread length, in the grade and finish your application requires. You get quick quote turnaround, flexible stock and release programs, bulk pricing on production volumes, and fasteners manufactured in the USA and backed by our OEM satisfaction guarantee. Request a quote or contact us on your next order.
Frequently Asked Questions
What is a square bend U bolt used for?
A square bend U bolt is a threaded fastener used to clamp square or rectangular components, such as tubing, channel, or flat bar, to a mounting plate or bracket. Common applications include securing leaf springs to trailer axles, mounting brackets to structural steel, and clamping implement toolbars on agricultural equipment.
What is the difference between a square bend and a round bend U bolt?
A square bend U bolt has flat sides that create a flush, full contact fit against square and rectangular stock, while a round bend U bolt follows a continuous curve designed to mate with round pipe and tubing. Using the wrong bend on the wrong shape leads to point loading and a weaker clamp.
How strong is a steel square bend U bolt?
Steel square bend U bolts offer high tensile strength and strong resistance to mechanical wear, with the exact strength depending on the grade selected. Low carbon steel suits general duty work, while medium carbon and heat treated steel handle higher strength applications with sustained or dynamic loads.
How do I measure a square bend U bolt?
Measure inside width between the two legs, inside length from the base of the bend to the end of the legs, rod diameter for thread compatibility, and thread length to clear your washer, nut, and mounting plate combined. Calipers give the most accurate readings for all four dimensions.
What finish should I choose for outdoor use?
Zinc plating offers a solid baseline of corrosion resistance for general outdoor exposure, while hot dip galvanizing, coated in molten zinc, provides a thicker protective layer for equipment exposed to mud, moisture, and fertilizer. Stainless steel is the strongest option for marine environments or constant washdown conditions.
Can square bend U bolts be made to custom sizes?
Yes, square bend U bolts can be manufactured to custom inside width, leg length, thread length, grade, and finish to match specific requirements. BoltCraft produces custom square U bolts for OEM applications alongside standard catalog sizes and bulk production runs.
Choosing the Right Square Bend U Bolt for the Job
Choosing the right U bolt comes down to three decisions: the cross section of the member you are clamping, the load and duty cycle it will see, and the environment it will be exposed to. Match a square bend to square and rectangular stock, size the rod diameter and grade to your load, and choose a finish suited to your exposure, and you get a fastener that holds torque and resists corrosion for the life of the assembly. When you are ready to order standard or custom steel square bend U bolts, BoltCraft is ready to manufacture them to your specification.
