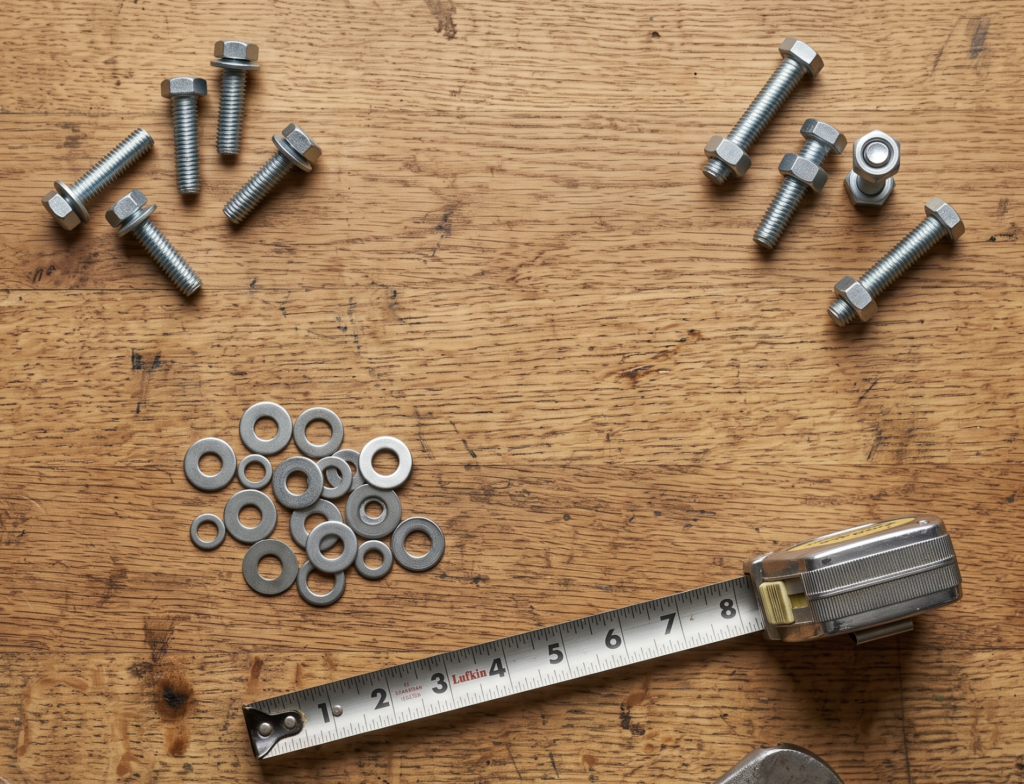

If you have ever compared a hex cap screw to a hex bolt side by side, you already know why so many people assume they are the same part. Both have a hexagonal head, both come in similar diameters, and both get tightened with the same wrench or socket. But once you look at how each one is actually installed, manufactured, and toleranced, the differences become clear, and they matter a lot more than they might seem to at first glance. This guide breaks down what separates hex cap screws from hex bolts, where each one belongs, and how to make sure you order the right fastener the first time.
What Is a Hex Cap Screw?
Under ASME B18.2.1, a hex head cap screw is a fastener with a hexagonal head designed to be turned and torqued directly into a tapped hole or into a nut in an assembly where precise fit matters. One of the defining features of a typical cap screw is the washer face machined into the underside of the head, which gives it a flat, consistent bearing surface that helps distribute clamping load evenly. Hex cap screws are manufactured to specific tolerances, which is why they fit accurately into pre tapped holes rather than passing through with clearance. You will commonly find hex cap screws in diameters ranging from about a quarter inch up to one and a half inches, and they show up constantly in OEM assemblies, machinery, and equipment where a secure and reliable connection depends on tight, repeatable fit.
What Is a Hex Bolt?
The same ASME B18.2.1 standard also defines the hex bolt, and on the surface it looks nearly identical: a hexagonal head, external threading, and a body that comes in similar diameters. The key difference is in how it is tightened and toleranced. A hex bolt is typically installed by tightening a nut onto the bolt, rather than turning the head into a threaded hole. Because the bolt passes through a clearance hole and relies on a nut to complete the connection, hex bolts generally do not have a washer face under the head. Hex bolts usually have diameters between a quarter inch and one inch, and they are commonly specified for construction where strength is prioritized over precision, including structural steel connections, heavy equipment frames, and general purpose fastening where a nut and bolt combination is standard.
Hex Cap Screw vs Hex Bolt: The Core Difference
Here is the distinction that matters most, and the one you should keep in mind above everything else in this article: a hex cap screw is torqued by turning the head into threads, while a hex bolt is torqued by turning a nut onto the shank. That single difference in installation method is what drives nearly every other difference between the two, from tolerances to manufacturing process to where each fastener gets used. If you only remember one thing from this guide, remember that the head turns on a cap screw, and the nut turns on a bolt.
Physical and Dimensional Differences
Washer Face
Hex cap screws include a machined washer face directly under the head, a small flat ring that creates a clean, even bearing surface against the material being fastened. Hex bolts typically skip this feature since the nut, not the head, is doing the clamping work at the far end of the assembly. This washer face is one of the fastest ways to visually tell the two apart if you know what to look for.
Under Head Radius and Bearing Surface
The under head juncture, where the shank meets the head, is another area where cap screws hold tighter specific tolerances. Hex cap screws are manufactured with a controlled radius at this transition point and a tighter bearing surface tolerance overall, which supports more consistent torque and clamping performance. Hex bolts allow more variation in this area, including a permissible die seam left over from the forging process, something you would rarely see on a properly manufactured hex cap screw.
Body Diameter and Tolerance
This is where a lot of confusion happens, because on paper the nominal sizes look the same. Looking at a quarter inch fastener as an example makes the difference concrete.
| Fastener Type | Nominal Diameter | Minimum Body Diameter | Maximum Diameter Tolerance |
| Hex Cap Screw | 1/4 inch | 0.245 inch | Tighter, narrower tolerance band |
| Hex Bolt | 1/4 inch | Lower side of range | 0.023 inch |
Hex cap screws are held to tighter tolerances than hex bolts across the board, which is why cap screws are the more suitable choice when body diameter needs to fit precisely into a pre tapped hole. Hex bolts, by design, are allowed a higher maximum tolerance and larger tolerance zones since they only need to pass through a clearance hole rather than thread directly into material.
Chamfered End
Another detail worth knowing: hex cap screws feature a chamfered end at the tip of the shank. That chamfered point helps guide the fastener smoothly into a tapped hole, reducing the chance of cross threading during assembly. It is a small feature, but for anyone doing repetitive assembly work, it makes insertion faster and more reliable.
Manufacturing Process Differences
Hex cap screws are typically produced through a cold heading process or CNC operation when tighter tolerances or lower volume, higher precision runs are needed. Cold heading shapes the head and body of the fastener at room temperature under high pressure, which supports the tighter tolerances and cleaner bearing surface that cap screws require. Hex bolts, on the other hand, are typically hot forged, a process well suited to producing strong fasteners at scale without the same level of dimensional precision.
Material Specifications and Grades
Common fastener specifications differ between the two categories, though there is some overlap worth understanding before you place an order.
| Fastener Type | Common Specifications |
| Hex Cap Screws | ASTM A449, ASTM A354, SAE J429 Grades 2, 5, and 8, ASTM F593 for stainless steel |
| Hex Bolts | ASTM A307 Grade A, ASTM A354, ASTM F1554 |
Hex head cap screws comply with ASTM A449 or SAE J429 in most industrial applications, while hex bolts typically comply with ASTM A307 Grade A for general purpose construction use. Note that some specs, like ASTM A354, can apply to either fastener type depending on the manufacturer, which is exactly the kind of overlap that causes confusion when comparing spec sheets from different suppliers. If tensile strength and grade are critical to your application, always confirm the spec against the actual part drawing rather than assuming based on head shape alone.
Where Each Fastener Is Typically Used
Hex Cap Screw Applications
Hex cap screws are a natural fit for the industries BoltCraft serves most: agricultural OEM equipment, automotive assembly, and machinery manufacturing. These are environments where tight tolerances, threaded holes, and consistent clamping force are not optional. Hex cap screws are often used in OEM applications precisely because the tighter manufacturing standards behind them support reliable performance across high vibration and high stress operating conditions.
Hex Bolt Applications
Hex bolts belong in heavy duty construction and structural work, where mechanical strength and load capacity matter more than dimensional precision. Bridges, structural steel frames, and general construction assemblies rely on a nut and bolt combination that can be tightened, inspected, and if necessary replaced without needing threads cut into the base material. In these settings, the larger tolerance zones on hex bolts are not a drawback. They are simply appropriate for the job.
Can Hex Bolts and Hex Cap Screws Be Used Interchangeably?
This comes up constantly, and the honest answer is that visually they can look almost identical, but swapping one for the other in a spec critical application can easily compromise fit or performance. A hex bolt dropped into an assembly designed for a hex cap screw may not thread properly into a tapped hole, or may not deliver the bearing surface and clamping consistency the design calls for. Likewise, using a cap screw where a bolt and nut combination was specified can leave you without the flexibility that structural applications often need. The takeaway is simple: match the fastener to the design intent, not just the nominal size, or you risk varying results and a connection that does not perform the way it should under load or environmental conditions.
How to Order the Correct Fastener for Your Application
Ordering bolts and cap screws correctly comes down to having the right details ready before you request a quote. Here is what to have on hand:
- Nominal size and thread pitch
- Overall length, and whether you need fully threaded or partially threaded
- Grade or spec (for example SAE J429 Grade 8 or ASTM A307 Grade A)
- Material, including whether stainless steel or another alloy is required
- Finish and any environmental conditions the fastener will be exposed to
Having these key characteristics ready helps our team move your quote faster and reduces the chance of ordering the wrong part for your assembly. If you are unsure which fastener fits your application, our team can help you make informed decisions based on your specific tolerances and performance needs. Visit our quote page to get started.
Frequently Asked Questions
Is a hex bolt the same as a hex cap screw?
No. While they share a hexagonal head shape, a hex cap screw is tightened by turning the head into a tapped hole, and a hex bolt is tightened by turning a nut onto the shank. This difference drives tolerances, bearing surface design, and typical use.
How do I know if I need a bolt or a cap screw?
Look at how the connection is being made. If you are threading into a tapped hole and need a tight, precise fit, a hex cap screw is the right choice. If you are joining two parts with a clearance hole and a nut, a hex bolt is the more suitable fastener.
What grade should I choose for an OEM application?
Most OEM applications in agricultural, automotive, and machinery assemblies call for SAE J429 Grade 5 or Grade 8 hex cap screws, depending on the tensile strength and load requirements of the assembly. Your engineering drawing or design spec should confirm the exact grade needed.
Does BoltCraft manufacture both hex bolts and hex cap screws?
Yes. BoltCraft manufactures and supplies both standard and custom hex bolts and hex cap screws, along with U-bolts, plow bolts, flange cap screws, hex nuts, and washers, backed by quick quote turnaround and a 100% OEM satisfaction guarantee.
Get the Right Fastener From BoltCraft
Choosing between a hex cap screw and a hex bolt is not about which one is better. It is about matching the fastener to how your assembly actually works. BoltCraft has spent decades manufacturing precision fasteners for agricultural OEMs, automotive assemblies, industrial equipment, and heavy duty construction, and our team can help you select the right hex cap screw or hex bolt for your exact application, with fast lead times and bulk discounts built for real production schedules.
Ready to order? Request a quote today, or browse our hex bolt and hex cap screw product categories to find the exact spec, grade, and size your project needs.
